OVERVIEW

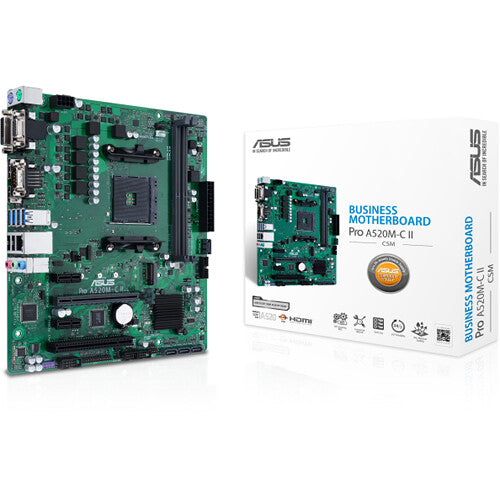

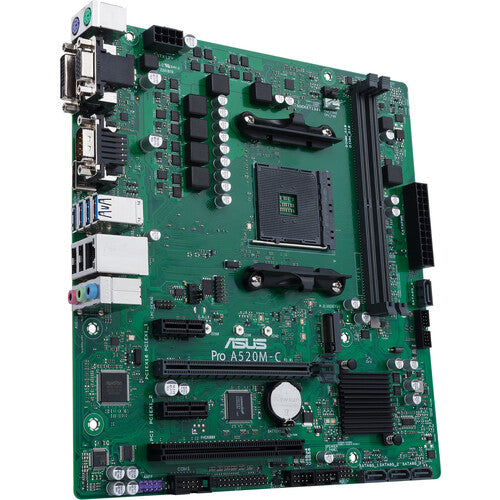

Bring reliability and stability in a small form factor to your enterprise workstation with the Pro A520M-C II/CSM Micro-ATX Motherboard from ASUS. Designed for commercial applications, this micro-ATX motherboard incorporates the A520 chipset and AM4 socket, making it compatible with AMD 3000-, 4000 G-, and 5000 series processors. Install up to 64GB of dual-channel DDR4 RAM across two memory slots, with speeds up to 4866 MHz when overclocked. Connect storage drives using the four SATA III or one M.2 M-Key interfaces. Adapter cards can be installed in the PCIe 3.0 x16 and two PCIe 3.0 x1 slots.

The stainless steel I/O features four USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports to connect your peripherals to. Connect an older mouse or keyboard using the two PS/2 ports. Displays can be connected to the rear panel thanks to an HDMI, DisplayPort, DVI-D, and VGA outputs. Audio devices can be connected to the three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet. Internal headers support one USB 3.2 Gen 1 Type-A port and two USB 2.0 Type-A ports, as well as two case fan headers, a chassis intrusion alarm, clear CMOS button, debugging LED, and front speakers. Audio is handled by the Realtek ALC897 codec, which supports 7.1 surround sound and 24-bit 192 kHz playback. In addition to featuring an integrated TPM chip, this commercial motherboard also features the ASUS Control Center Express for remote management and IT operations. The ASUS PRO A520M-C/CSM is compatible with the Windows 10 and Windows 11 64-Bit operating systems.

FEATURES

• Micro-ATX Form Factor
• AMD A520 Chipset
• AM4 Socket
• 2 x Dual-Channel-4866 (O.C.)
• 4 x SATA III, 1 x M.2
• 1 x PCIe 3.0 x16 Slot
• 2 x PCIe 3.0 x1 Slots
• 1 x PCI Slot
• 7.1-Channel Realtek ALC897 Codec
• Supports Windows 10 & 11 (64-Bit).
